Part number
LS-DSP-007-06-20S
MB Series Static Mixing Tube, 20 elements, 155.4 mm

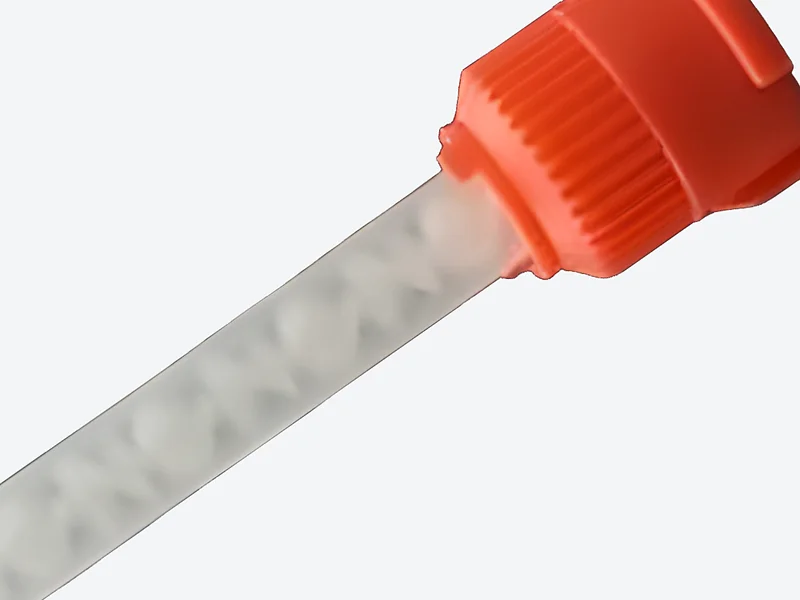

Photo shows the family range. Line drawing for identification, not to scale
| Length | 155.4 mm (6.125 in) |
|---|---|
| OD mm | 8.35 |
| Elements | 20 |
| Hub / fitting | B system |
| Mixer system | B system 50 ml |
| Notes | 1:1; dia8.35mm; core6mm; 20 sections; outlet1.5mm |
Quoted per SKU and quantity, FOB China or delivered duty paid.
Cross-reference
Part numbers from other brands that this SKU replaces.
| Brand | Their part number | Match | Their description |
|---|---|---|---|
| Sulzer Mixpac / medmix | MBHX 06-20S | Direct equivalent | B system helical static mixer, 6.5 mm ID, 20 elements, tapered outlet, 4:1/10:1 |
| Sulzer Mixpac / medmix | MBH 06-20S | Direct equivalent | B system helical static mixer, 6.5 mm ID, 20 elements, tapered outlet, 1:1/2:1 |
| Sulzer Mixpac / medmix | MB 6.5-20-S | Same gauge and length | B system helical static mixer, 6.5 mm ID, 20 elements, stepped outlet |
| Sulzer Mixpac / medmix | MBHX 06-20LL | Same gauge and length | B system helical static mixer, 6.5 mm ID, 20 elements, luer lock outlet, 4:1/10:1 |
| Sulzer Mixpac / medmix | MBH 06-20LL | Same gauge and length | B system helical static mixer, 6.5 mm ID, 20 elements, luer lock outlet, 1:1/2:1 |
| Sulzer Mixpac / medmix | MBX 6.5-20-S | Same gauge and length | B system helical static mixer, 6.5 mm ID, 20 elements, stepped outlet |
| Sulzer Mixpac / medmix | MBHX 06-16S | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, tapered outlet, 4:1/10:1 |
| Sulzer Mixpac / medmix | MBHX 06-16D | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, straight outlet, 4:1/10:1 |
| Sulzer Mixpac / medmix | MBH 06-11D | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 11 elements, straight outlet, 1:1/2:1 |
| Sulzer Mixpac / medmix | MB 6.5-16-S | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, outlet |
| Sulzer Mixpac / medmix | MB 6.5-11-D | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 11 elements, straight outlet, 1:1/2:1 |
| Sulzer Mixpac / medmix | MBH 06-16S | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, tapered outlet, 1:1/2:1 |
| Sulzer Mixpac / medmix | MBX 6.5-16-S | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, stepped outlet |
| Sulzer Mixpac / medmix | MBX 6.5-16-D | Nearest equivalent | B system helical static mixer, 6.5 mm ID, 16 elements, straight outlet, 4:1/10:1 |
Brand names and part numbers are referenced for compatibility identification only. Lineside is not affiliated with, endorsed by or sponsored by any of the brands listed.
