Brush Tip Dispensing Needles
Brush tip dispensing needles spread glues and greases as they are dispensed. Material flows through the tube into the bristles, so a single pass lays down a film instead of a bead.

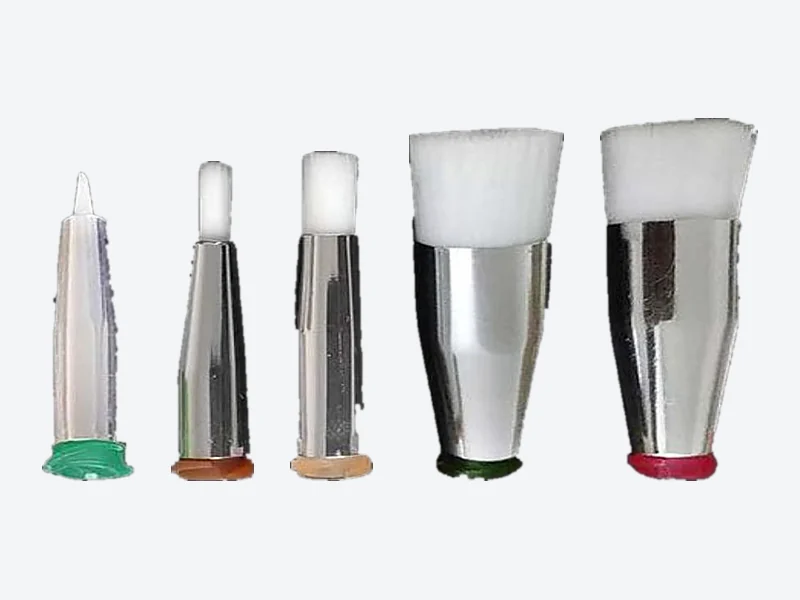

Each tip has an aluminum tube with nylon bristles. Round heads come in 2, 4 and 6 mm widths and flat heads in 5 and 10 mm, at about 37 to 40 mm (1.46 to 1.5 in.) overall. A wide 18 mm round brush on a 1.5 mm ID tube is 78 mm (3.07 in.) long. Other brush widths are made to order.
| SKU | Length mm | Length in | Material |
|---|---|---|---|
| LS-DSP-114-2MM | 37 | 1.46 | Nylon brush + aluminum |
| LS-DSP-114-6MM | 37 | 1.46 | Nylon brush + aluminum |
| LS-DSP-114-4MM | 38 | 1-1/2 | Nylon brush + aluminum |
| LS-DSP-114-5MM-FLAT | 38 | 1-1/2 | Nylon brush + aluminum |
| LS-DSP-114-10MM-FLAT | 38 | 1-1/2 | Nylon brush + aluminum |
| LS-DSP-114-18MM | 78 | 3.063 | Nylon brush + aluminum |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other gauges, lengths and hub colors can be specified to order.
Questions about brush tip dispensing needles
What is a brush tip used for?
It spreads adhesive, grease or coating over an area instead of depositing a bead or dot. The fluid is fed through the tube to the bristles.
Round or flat head?
Round heads come in 2, 4, 6 and 18 mm widths and flat heads in 5 and 10 mm. Pick by the width of the band you need to coat.
What are the bristles made of?
Nylon. Check compatibility with any solvent-based material before use.
