Dual cartridges
3 families, 10 variants
Dual Cartridges 1:1, 5 to 24 ml
Compact two-chamber cartridges for two-component materials mixed at 1:1. Both chambers are the same size, so equal volumes of each component meet in the static mixer. They suit repair kits, sample packs and hand-dispensed filling programmes.
The range is listed in 5, 14 and 24 ml. Overall lengths are 107, 110 and 112 mm, with chamber diameters of 9.22, 13.65 and 17 mm. Outlet and plunger components are confirmed for each order. We supply the range for filling and resale.
| SKU | Specification | Dimensions |
|---|---|---|
| LS-DSP-211-5ML | 5 ml, 1:1 dual cartridge | Chamber dia 9.22 mm, length 107 mm |
| LS-DSP-211-14ML | 14 ml, 1:1 dual cartridge | Chamber dia 13.65 mm, length 110 mm |
| LS-DSP-211-24ML | 24 ml, 1:1 dual cartridge | Chamber dia 17 mm, length 112 mm |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about dual cartridges 1:1, 5 to 24 ml
What does 1:1 mean on a dual cartridge?
Both chambers have the same cross-section, so equal volumes of each component leave the cartridge. The ratio is fixed by the chambers, not by the applicator.
Do these cartridges need a matching applicator?
Yes. The applicator plungers must match the chamber diameters and the cartridge format. Tell us your applicator and we confirm fit, or supply matching applicators from our range.
Which mixers fit?
Fit depends on the outlet style of the cartridge version. We confirm the outlet and a matching static mixer from our mixer range when you order.
Dual Cartridges 1:1, 50 ml
Two-chamber 50 ml cartridges for two-component materials mixed at 1:1. Equal chambers deliver equal volumes of each component to the static mixer, in a common format for handheld applicators.
Two versions are listed with 21 mm chambers and overall lengths of 118 mm and 122 mm. Because the lengths differ, buyers should identify the version as well as capacity and ratio when ordering, and we confirm applicator fit. We supply the range for filling and resale.
| SKU | Specification | Dimensions |
|---|---|---|
| LS-DSP-212-50ML-GEN1 | 50 ml, 1:1 dual cartridge, gen1 version | Chamber dia 21 mm, length 118 mm |
| LS-DSP-212-50ML-GEN2 | 50 ml, 1:1 dual cartridge, gen2 version | Chamber dia 21 mm, length 122 mm |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about dual cartridges 1:1, 50 ml
What does 1:1 mean on a dual cartridge?
Both chambers have the same cross-section, so equal volumes of each component leave the cartridge. The ratio is fixed by the chambers, not by the applicator.
Do these cartridges need a matching applicator?
Yes. The applicator plungers must match the chamber diameters and the cartridge format. Tell us your applicator and we confirm fit, or supply matching applicators from our range.
Which mixers fit?
Fit depends on the outlet style of the cartridge version. We confirm the outlet and a matching static mixer from our mixer range when you order.
Dual Cartridges 1:1, 100 to 1500 ml
Larger two-chamber cartridges for two-component materials mixed at 1:1, for users who dispense higher volumes per fill. Equal chambers deliver equal volumes of each component to the static mixer.
The range is listed in 100, 200, 400, 600 and 1500 ml. Chamber diameters run from 26.93 mm to 78 mm and overall lengths from 136 mm to 257 mm. Applicator fit, outlet and supplied pistons or caps are confirmed for each version. We supply the range for filling and resale.
| SKU | Specification | Dimensions |
|---|---|---|
| LS-DSP-213-100ML | 100 ml, 1:1 dual cartridge | Chamber dia 26.93 mm, length 136 mm |
| LS-DSP-213-200ML | 200 ml, 1:1 dual cartridge | Chamber dia 37 mm, length 190 mm |
| LS-DSP-213-400ML | 400 ml, 1:1 dual cartridge | Chamber dia 44 mm, length 220 mm |
| LS-DSP-213-600ML | 600 ml, 1:1 dual cartridge | Chamber dia 48 mm, length 257 mm |
| LS-DSP-213-1500ML | 1500 ml, 1:1 dual cartridge | Chamber dia 78 mm, length 256 mm |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about dual cartridges 1:1, 100 to 1500 ml
What does 1:1 mean on a dual cartridge?
Both chambers have the same cross-section, so equal volumes of each component leave the cartridge. The ratio is fixed by the chambers, not by the applicator.
Do these cartridges need a matching applicator?
Yes. The applicator plungers must match the chamber diameters and the cartridge format. Tell us your applicator and we confirm fit, or supply matching applicators from our range.
Which mixers fit?
Fit depends on the outlet style of the cartridge version. We confirm the outlet and a matching static mixer from our mixer range when you order.
Manual applicators
7 families, 11 variants
Manual Dual-Cartridge Applicators, 50 ml
A hand-operated applicator for 50 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
Versions are listed for 1:1, 2:1, 4:1, 10:1 cartridges; each version is built for one ratio, so the applicator does not switch ratio on its own. The body is ABS plastic. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-201-50ML-1-1 | 50 ml, 1:1, 2K, manual, ABS body | ABS plastic |
| LS-DSP-201-50ML-2-1 | 50 ml, 2:1, 2K, manual, ABS body | ABS plastic |
| LS-DSP-201-50ML-4-1 | 50 ml, 4:1, 2K, manual, ABS body | ABS plastic |
| LS-DSP-201-50ML-10-1 | 50 ml, 10:1, 2K, manual, ABS body | ABS plastic |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 50 ml
Which cartridges does this applicator take?
It takes 50 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.
Manual Dual-Cartridge Applicators, 100 ml 1:1
A hand-operated applicator for 100 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
It is listed in a 1:1 version. The body is ABS plastic. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-202-100ML-1-1 | 100 ml, 1:1, 2K, manual, ABS body | ABS plastic |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 100 ml 1:1
Which cartridges does this applicator take?
It takes 100 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.

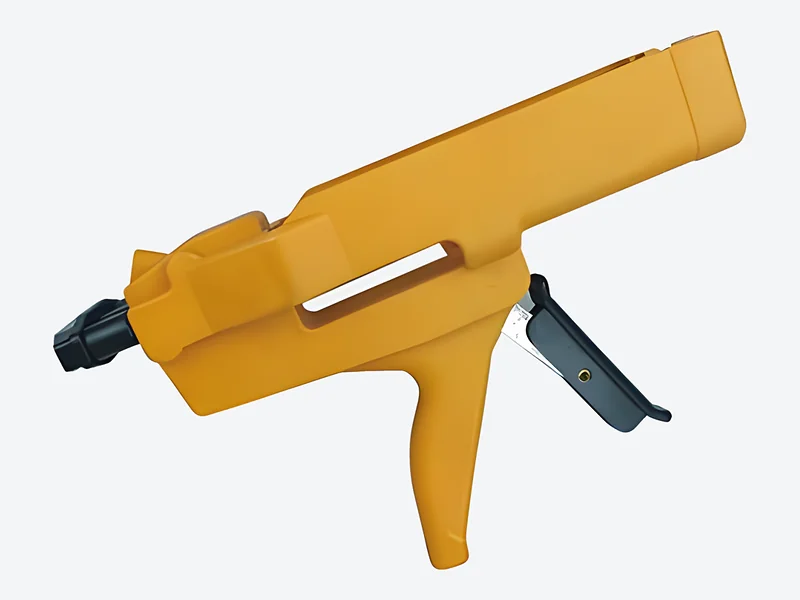

Manual Dual-Cartridge Applicators, 200 ml 1:1
A hand-operated applicator for 200 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
It is listed in a 1:1 version. The body is ABS plastic. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-203-200ML-1-1 | 200 ml, 1:1, 2K, manual, ABS body | ABS plastic |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 200 ml 1:1
Which cartridges does this applicator take?
It takes 200 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.

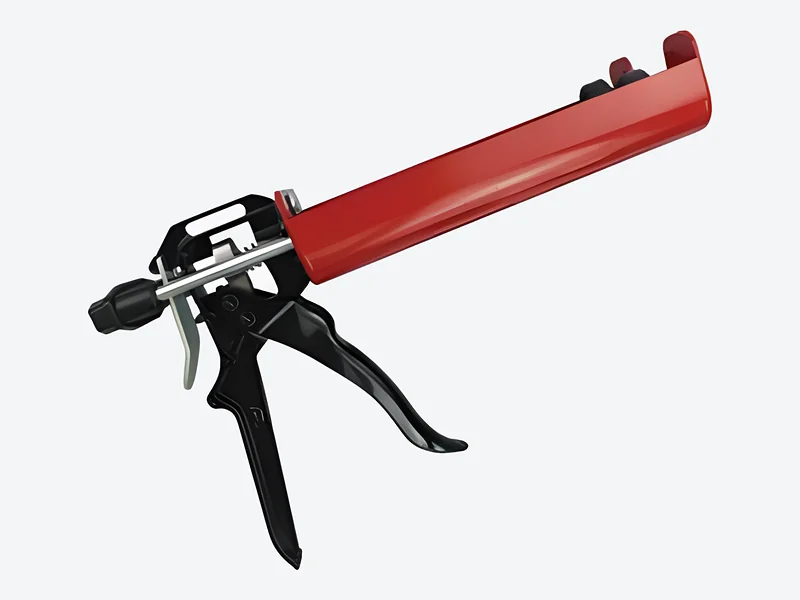

Manual Dual-Cartridge Applicators, 400 ml
A hand-operated applicator for 400 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
Versions are listed for 1:1, 2:1 cartridges; each version is built for one ratio, so the applicator does not switch ratio on its own. The body is metal. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-204-400ML-1-1 | 400 ml, 1:1, 2K, manual, metal body | Metal |
| LS-DSP-204-400ML-2-1 | 400 ml, 2:1, 2K, manual, metal body | Metal |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 400 ml
Which cartridges does this applicator take?
It takes 400 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.

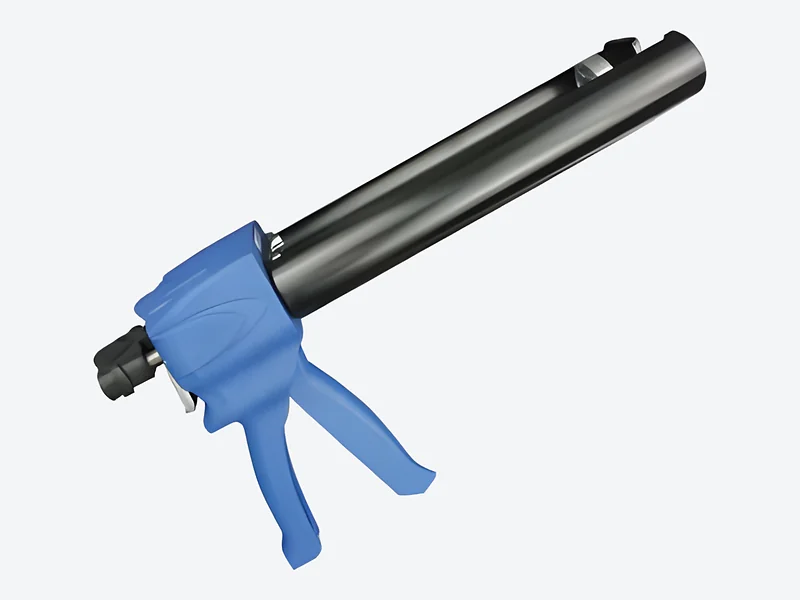

Manual Dual-Cartridge Applicators, 450 ml 2:1
A hand-operated applicator for 450 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
It is listed in a 2:1 version. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification |
|---|---|
| LS-DSP-205-450ML-2-1 | 450 ml, 2:1, 2K, manual |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 450 ml 2:1
Which cartridges does this applicator take?
It takes 450 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.

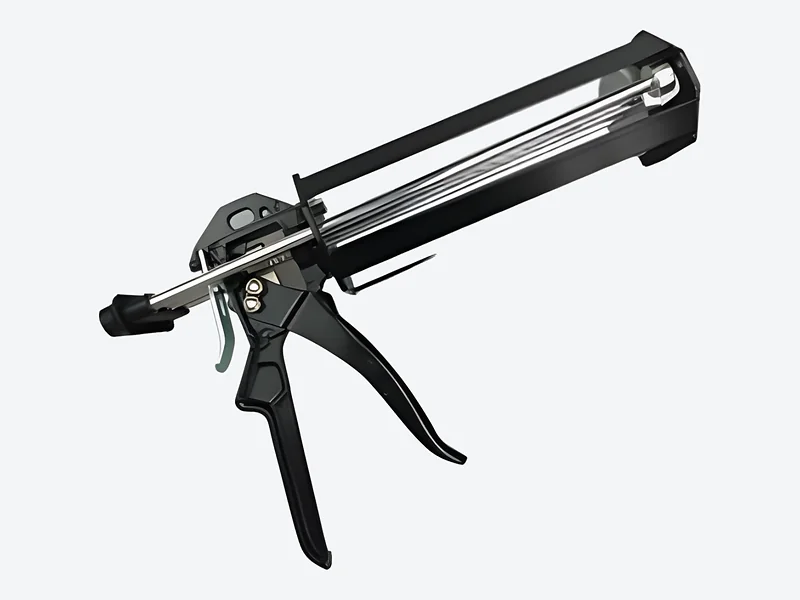

Manual Dual-Cartridge Applicators, 490 ml 10:1
A hand-operated applicator for 490 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
It is listed in a 10:1 version. The body is metal. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-206-490ML-10-1 | 490 ml, 10:1, 2K, manual, metal body | Metal |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 490 ml 10:1
Which cartridges does this applicator take?
It takes 490 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.
Manual Dual-Cartridge Applicators, 600 ml 1:1
A hand-operated applicator for 600 ml two-component cartridges. The trigger drives both plungers forward together, pushing the two components through a static mixer at the ratio set by the cartridge chambers. It suits bench work, repairs and site jobs where no air supply is available.
It is listed in a 1:1 version. Plunger geometry must match the cartridge chambers, so we confirm cartridge fit before supply. We supply the range for resale.
| SKU | Specification |
|---|---|
| LS-DSP-207-600ML-1-1 | 600 ml, 1:1, 2K, manual |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about manual dual-cartridge applicators, 600 ml 1:1
Which cartridges does this applicator take?
It takes 600 ml two-component cartridges whose chamber geometry matches the plungers of the chosen version. Send us your cartridge details and we confirm fit before supply.
Can one applicator handle different mix ratios?
No. Each version is built for one ratio, because the plungers are sized to the cartridge chambers. Order the version that matches the ratio of your material.
When should a buyer choose manual over pneumatic?
Manual applicators need no air line and suit intermittent use, field work and repairs. For long runs or thicker materials, a pneumatic applicator reduces operator effort.
Pneumatic applicators
3 families, 6 variants
Pneumatic Dual-Cartridge Applicators, 50 ml
An air-powered applicator for 50 ml two-component cartridges. Compressed air drives both plungers together, which gives the operator steady output with less hand fatigue than a manual tool on long runs or thicker materials.
Versions are listed for 1:1, 2:1, 4:1, 10:1 cartridges; each version is built for one ratio. The body is aluminum alloy. Air supply requirements and the cartridge interface are confirmed for each order. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-208-50ML-1-1 | 50 ml, 1:1, 2K, pneumatic, aluminum alloy body | Aluminum alloy |
| LS-DSP-208-50ML-2-1 | 50 ml, 2:1, 2K, pneumatic, aluminum alloy body | Aluminum alloy |
| LS-DSP-208-50ML-4-1 | 50 ml, 4:1, 2K, pneumatic, aluminum alloy body | Aluminum alloy |
| LS-DSP-208-50ML-10-1 | 50 ml, 10:1, 2K, pneumatic, aluminum alloy body | Aluminum alloy |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about pneumatic dual-cartridge applicators, 50 ml
What does this applicator need to run?
It needs a compressed air supply. We confirm the air supply requirements and the cartridge interface for each order.
Which cartridges does it take?
It takes 50 ml two-component cartridges that match the plungers of the chosen version. Send us your cartridge details and we confirm fit.
Why choose pneumatic over manual?
Air drive gives steadier output and less hand fatigue on long runs and thicker materials. Manual applicators remain the better fit where no air line is available.

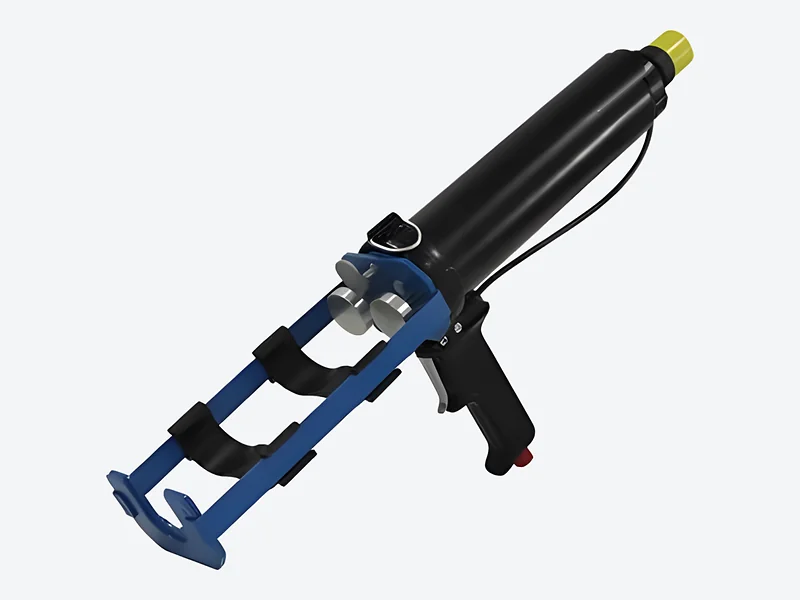

Pneumatic Dual-Cartridge Applicators, 400 ml 1:1
An air-powered applicator for 400 ml two-component cartridges. Compressed air drives both plungers together, which gives the operator steady output with less hand fatigue than a manual tool on long runs or thicker materials.
It is listed in a 1:1 version. The body is metal. Air supply requirements and the cartridge interface are confirmed for each order. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-209-400ML-1-1 | 400 ml, 1:1, 2K, pneumatic, metal body | Metal |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about pneumatic dual-cartridge applicators, 400 ml 1:1
What does this applicator need to run?
It needs a compressed air supply. We confirm the air supply requirements and the cartridge interface for each order.
Which cartridges does it take?
It takes 400 ml two-component cartridges that match the plungers of the chosen version. Send us your cartridge details and we confirm fit.
Why choose pneumatic over manual?
Air drive gives steadier output and less hand fatigue on long runs and thicker materials. Manual applicators remain the better fit where no air line is available.

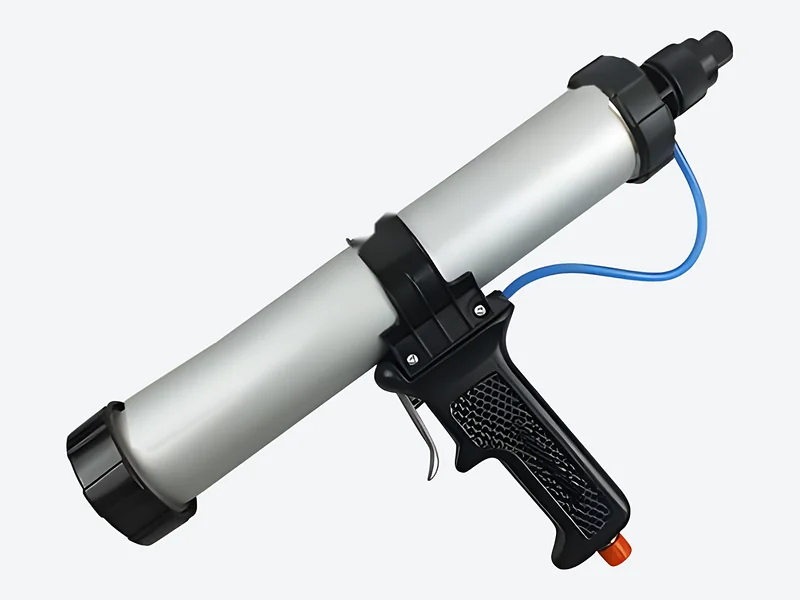

Pneumatic Single-Cartridge Applicators, 400 ml
An air-powered applicator for 400 ml single-component cartridges. Compressed air drives the plunger, giving steady output with less hand fatigue than a manual tool on long runs or thicker materials. As a single-component tool, it does not need a static mixer.
The body is metal. Air supply requirements and the cartridge interface are confirmed for each order. We supply the range for resale.
| SKU | Specification | Material |
|---|---|---|
| LS-DSP-210-400ML-1K | 400 ml, 1K single component, pneumatic, metal body | Metal |
No sizes in this family at the selected gauge. Ask us for a custom size.
Other volumes and ratios: send us your requirement.
Questions about pneumatic single-cartridge applicators, 400 ml
What does this applicator need to run?
It needs a compressed air supply. We confirm the air supply requirements and the cartridge interface for each order.
Does it need a static mixer?
No. It dispenses single-component material from one cartridge, so no mixer is fitted.
Which cartridges does it take?
It takes 400 ml single-component cartridges. Send us your cartridge details and we confirm fit before supply.
