Part number

LS-DSP-004-408

Square Bayonet Static Mixing Tube, 8 elements, 61.8 mm

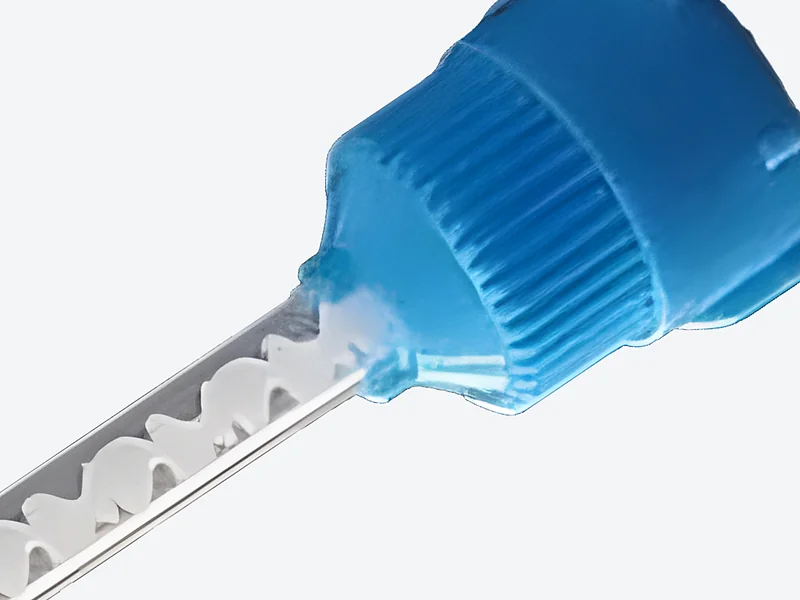

Clear static mixing tube with internal mixing elements and a blue ribbed bayonet inlet
Line drawing: Square Bayonet Static Mixing Tubes

Photo shows the family range. Line drawing for identification, not to scale

Specification
Length61.8 mm (2.438 in)
ID mm2
OD mm7.3
Elements8
MaterialPolypropylene
Hub / fittingBayonet
Mixer systemA system, bayonet 50 ml
NotesID2mm/OD7.3mm/core4.6mm; 8 sections
Get a quoteSpec sheet (PDF)

Quoted per SKU and quantity, FOB China or delivered duty paid.

Cross-reference

No brand part numbers are mapped to this SKU yet. Send us the part number you carry and we will confirm the match. Search the cross-reference

Custom options and delivery

  • Your specification

    Other gauges, lengths, threads, hubs and colors, made to a drawing we issue and you approve.

  • Your delivery terms

    FOB China through our agent, or delivered duty paid to your warehouse.
